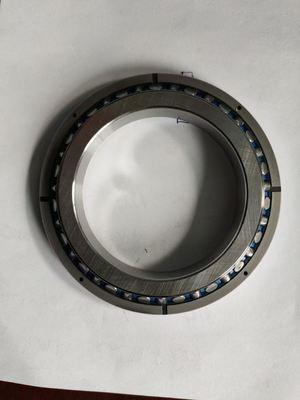

RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width

RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width
RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width

Grote Afbeelding :  RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width

Productdetails:
Plaats van herkomst: CHINA
Merknaam: HDBB
Certificering: ISO9001 CO GB
Modelnummer: RB12025
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 stc
Prijs: USD or CNY by Negotiation
Verpakking Details: Enig Kleurenvak/Industriële Verpakking
Levertijd: 5-7 werkdagen
Betalingscondities: T/T, Western Union, CNY, L/C bij gezicht
Contact

RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width

beschrijving
Functie: Kruisbanden Model: RB12025
Afdichtingstype: open of UU Gewicht (kg): 2.62
Materiaal: Chroomstaal GCr15 Nauwkeurigheid: P5 P4 P2
IKO: CRB12025 NSK: NRXT12025
Markeren:

gear crossed roller bearings

,

P5 crossed roller bearings

RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width


Type of guide Roller
Space retainer Yes
Material GCr15
Standard lubrication method    Grease lubrication
Oil hole Yes
Sealing Oil seal at both sides
Radial clearance CC0, C0, C1
Rotation accuracy P5/P4
Working temperature -20℃ ~ 80℃
RB12025 crossed roller bearing features:

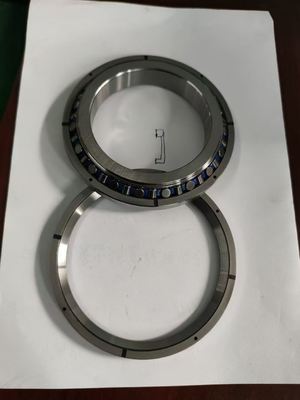

1. Integrated inner ring with separable outer ring, clearance can be adjusted.

2. Sustain radial, axial and moment loads at the same time

3. High running accuracy supplied with normal clearance, little clearance or even under a pre-load

4. Stable rotation, spacer retainer prevents rollers from skewing, thus eliminates friction between rollers, and avoid increasing of the rotation torque



RB12025 cross roller bearing installation instructions:



Cautions: For crossed roller bearings with split outer ring, when the rigidity of the mounting parts is not sufficient, stress concentration will occur at the contact area between the rollers and raceways, and the bearing performance will be deteriorated significantly.
Therefore, it is necessary to carefully examine the rigidity of housing and the strength of fixing bolts when a large moment will be applied.

1. Before installation, please clean bearing bracket, shaft, or other components, make sure there is no burrs or rough edge.
2. Fix the inner and outer rings in the axial direction by using fixing plates, etc.
3. Slightly loosen the fixing bolts of bearings outer ring during mounting.
